Public Address Amplifier
Current Location: Categories
New ProductsPublic Address Amplifier » MA-8 series
Product Details
▪Individual volume control
▪Low and high tone control
▪5-element LED level meter is provided for quick and easy visual monitoring of sound level
▪Short-circuit protection and alarm
▪Chime out prior to other inputs
▪Individual distributor for 6 channels
◦Functions:
▪Main supply: 220 to 240V/50Hz
▪Power consumption: 720W
▪Output power: 360W
▪Output regulation: <3dB
▪Frequency response: 100 to 16,000Hz
▪Distortion (THD): <0.3% at 1kHz and 1/3 rated power
▪Speaker output: 4 to 16Ω and 70/100V
▪Aux output: 600Ω/1V (odBV)
▪Mic 1/2/3: 600Ω and 6mΩ unbalanced
▪Aux 1/2/3: 10kΩ and 250mΩ unbalanced
▪Input:
▪Mic 1/2/3: ≥66dB
▪Aux 1/2: ≥70dB
▪S/N ratio:
▪Bass: ±10dB at 100Hz
▪Treble: ±10dB at 10kHz
▪Tone control:
▪Protection: AC fuse, DC voltage, over-load and short-circuit
▪Backup: 24V DC
▪Muting function: 0 to 30dB
▪Dimension (W x H x D): 440 x 92 x 330mm
◦

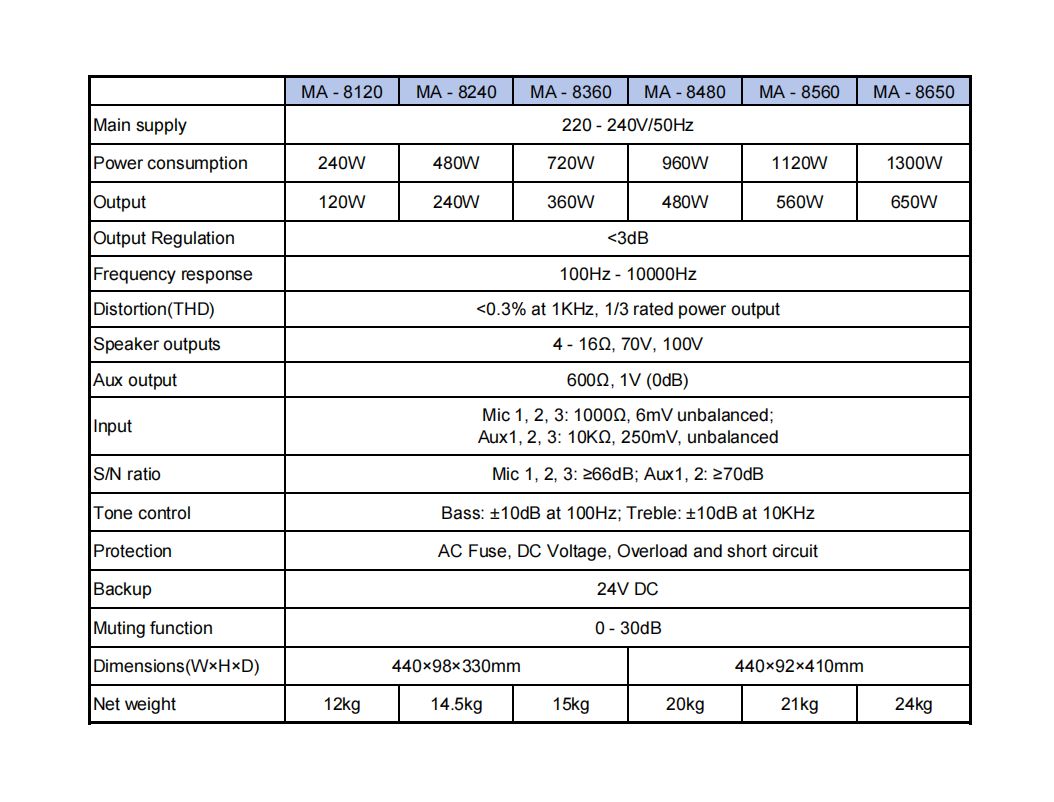

Specification:Net weight: 15kg
