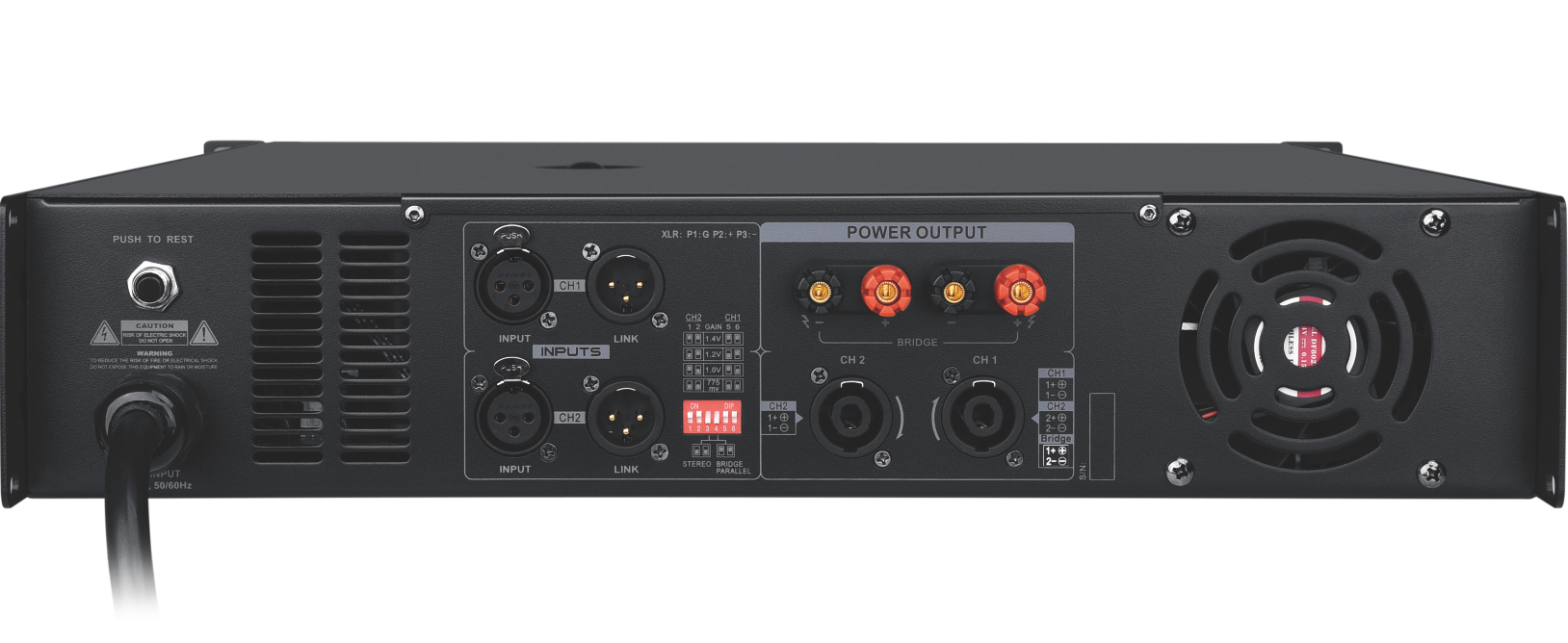

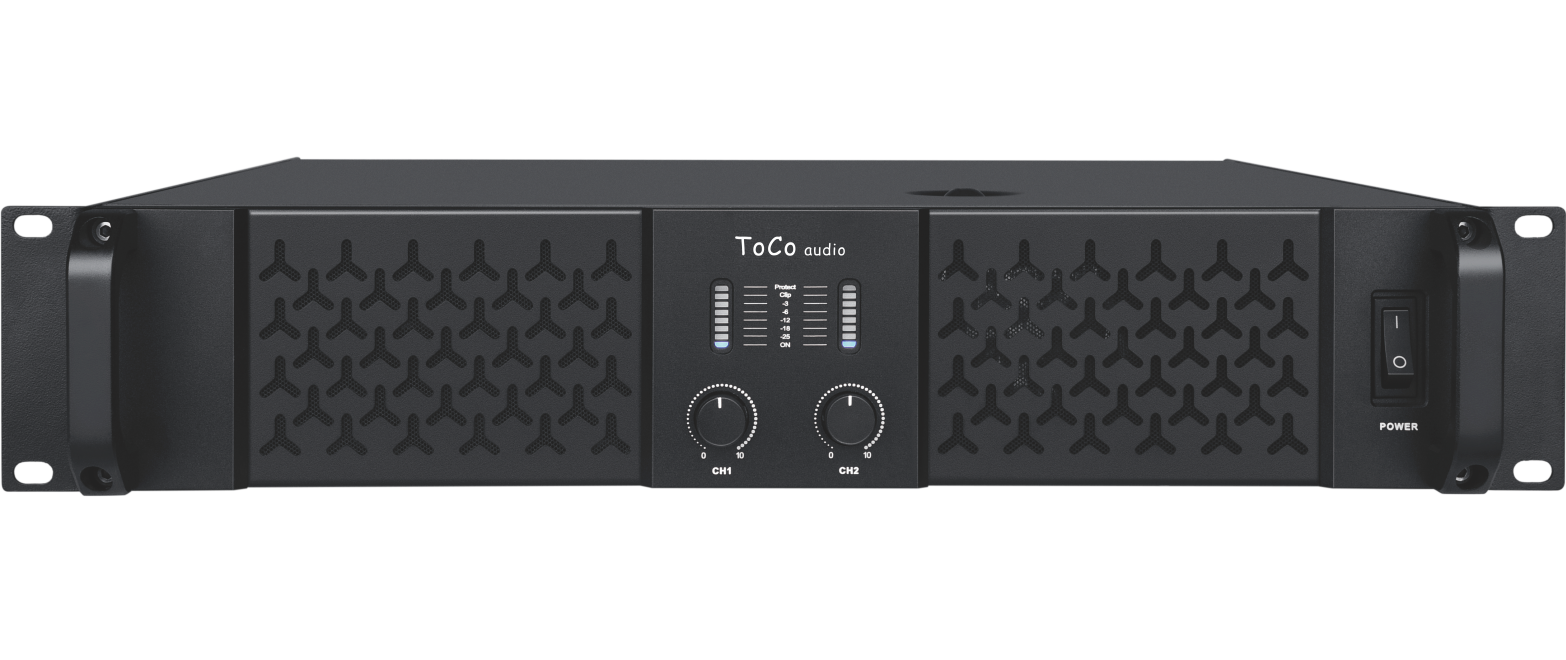

XT-12
1. XT-12 Power Amplifier: 2×1200W (8Ω), stable performance with multiple protections.
2. XT-12 Professional Power Amplifier, Class D, dimensions 482×475×88mm, net weight 22.0kg.
3. XT-12: high efficiency, low THD, high S/N ratio, and reliable soft-start protection.
Product Details
XT series power amplifier (it usually refers to the Class D power amplifier that uses Tripath's patented chip technology). Its core feature lies in the high-efficiency architecture of Class D power amplifiers. It optimizes sound quality through unique modulation technology, balances efficiency and listening experience, and represents an optimized upgrade of Class D power amplifiers in terms of sound performance. Its characteristics are as follows:
1. High Efficiency and Energy Saving
It retains the essential switching amplification feature of Class D power amplifiers, with an energy conversion rate of 80% to 90%—far higher than the approximately 50% efficiency of Class AB power amplifiers. It also has low quiescent power consumption and generates little heat during operation, complying with energy-saving standards. Thus, it is suitable for long-term powered-on systems such as audio and video systems.
2. Sound quality Improvement
It adopts Tripath's patented digital processing technologies (such as PWM, PDM, or similar modulation methods), which reduce the switching distortion (SSD) and electromagnetic interference (EMI) of Class D amplifiers, while also enabling fast tracking of the transient response of audio signals. The optimized feedback control circuit and carefully designed filter significantly improve the total harmonic distortion (THD) and noise (N) in the mid-to-high frequency range, enabling accurate reproduction of audio signals. The listening experience is closer to that of high-quality Class AB analog power amplifiers, meeting the high requirements of professional audio systems for sound reproduction accuracy.
3. High Integration
The core chip features high-density integration, with simple peripheral circuits and a lightweight overall design. It can deliver high power output while being integrated into professional audio and video systems with limited space constraints.
4. Wide Applications
It offers flexible output power options (supporting a wide load impedance range of 2Ω–8Ω), featuring high efficiency, low distortion, and pure, clear sound quality. It can be widely used in concerts, theaters, recording studios, party venues, bars, small and medium-sized conferences, small-scale monitoring systems, and home theaters. With its small size and light weight, it is convenient to install, transport, and move, making it suitable for mobile performances, commercial promotions, and other scenarios.
1. High Efficiency and Energy Saving
It retains the essential switching amplification feature of Class D power amplifiers, with an energy conversion rate of 80% to 90%—far higher than the approximately 50% efficiency of Class AB power amplifiers. It also has low quiescent power consumption and generates little heat during operation, complying with energy-saving standards. Thus, it is suitable for long-term powered-on systems such as audio and video systems.
2. Sound quality Improvement
It adopts Tripath's patented digital processing technologies (such as PWM, PDM, or similar modulation methods), which reduce the switching distortion (SSD) and electromagnetic interference (EMI) of Class D amplifiers, while also enabling fast tracking of the transient response of audio signals. The optimized feedback control circuit and carefully designed filter significantly improve the total harmonic distortion (THD) and noise (N) in the mid-to-high frequency range, enabling accurate reproduction of audio signals. The listening experience is closer to that of high-quality Class AB analog power amplifiers, meeting the high requirements of professional audio systems for sound reproduction accuracy.
3. High Integration
The core chip features high-density integration, with simple peripheral circuits and a lightweight overall design. It can deliver high power output while being integrated into professional audio and video systems with limited space constraints.
4. Wide Applications
It offers flexible output power options (supporting a wide load impedance range of 2Ω–8Ω), featuring high efficiency, low distortion, and pure, clear sound quality. It can be widely used in concerts, theaters, recording studios, party venues, bars, small and medium-sized conferences, small-scale monitoring systems, and home theaters. With its small size and light weight, it is convenient to install, transport, and move, making it suitable for mobile performances, commercial promotions, and other scenarios.
