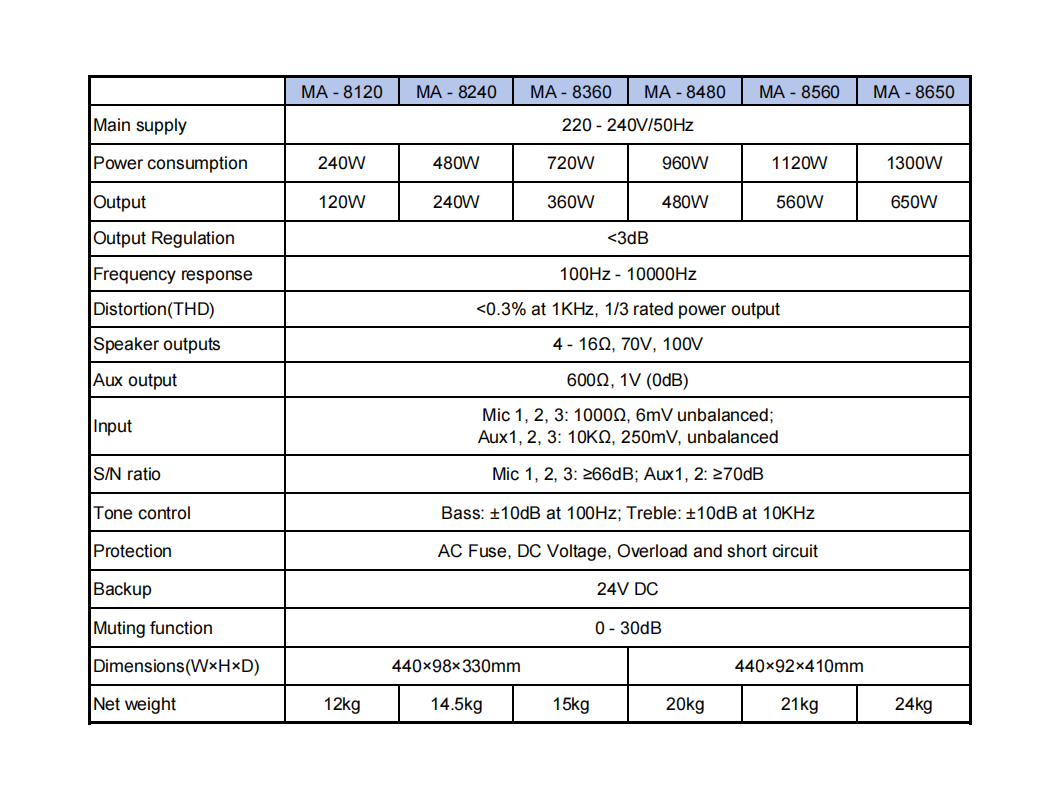

Model: MA-8120

Mains Supply:220-240V/50Hz
Power consumption:240W
Power Output:120W
Output Regulation:<3dB
Frequency response:100Hz-16000Hz
DISTORTION(THD):<0.3% at 1kHz,1/3 rated power
Speaker Output:4-16V,70Ve100V
Aux output:600V 1V (odBV)
Input:Mic 1,2,3:600V,6mV,unbalanced Aux 1,2,3:10kV,250mV,unbalanced
S/N ratio:Mic 1,2,3>66dB Aux 1,2>70dB
Tone control:Bass:±10dB at 100Hz Treble:±10dB at 10kHz
Protection:AC Fuse,DC Voltage,Overload and short circuit
Backup:24V DC
Muting function:0-30dB
Dimensions(W*H*D):440*92*330
Net weight:12kg

Model: MA-8240
Mains Supply:220-240V/50Hz
Power consumption:480W
Power Output:240W
Output Regulation:<3dB
Frequency response:100Hz-16000Hz
DISTORTION(THD):<0.3% at 1kHz,1/3 rated power
Speaker Output:4-16V,70Ve100V
Aux output:600V 1V (odBV)
Input:Mic 1,2,3:600V,6mV,unbalanced Aux 1,2,3:10kV,250mV,unbalanced
S/N ratio:Mic 1,2,3>66dB Aux 1,2>70dB
Tone control:Bass:±10dB at 100Hz Treble:±10dB at 10kHz
Protection:AC Fuse,DC Voltage,Overload and short circuit
Backup:24V DC
Muting function:0-30dB
Dimensions(W*H*D):440*92*330
Net weight:14.5kg

Model: MA-8360
Mains Supply:220-240V/50Hz
Power consumption:720W
Power Output:360W
Output Regulation:<3dB
Frequency response:100Hz-16000Hz
DISTORTION(THD):<0.3% at 1kHz,1/3 rated power
Speaker Output:4-16V,70Ve100V
Aux output:600V 1V (odBV)
Input:Mic 1,2,3:600V,6mV,unbalanced Aux 1,2,3:10kV,250mV,unbalanced
S/N ratio:Mic 1,2,3>66dB Aux 1,2>70dB
Tone control:Bass:±10dB at 100Hz Treble:±10dB at 10kHz
Protection:AC Fuse,DC Voltage,Overload and short circuit
Backup:24V DC
Muting function:0-30dB
Dimensions(W*H*D):440*92*330
Net weight:15kg

Model: MA-8480
Mains Supply:220-240V/50Hz
Power consumption:960W
Power Output:480W
Output Regulation:<3dB
Frequency response:100Hz-16000Hz
DISTORTION(THD):<0.3% at 1kHz,1/3 rated power
Speaker Output:4-16V,70Ve100V
Aux output:600V 1V (odBV)
Input:Mic 1,2,3:600V,6mV,unbalanced Aux 1,2,3:10kV,250mV,unbalanced
S/N ratio:Mic 1,2,3>66dB Aux 1,2>70dB
Tone control:Bass:±10dB at 100Hz Treble:±10dB at 10kHz
Protection:AC Fuse,DC Voltage,Overload and short circuit
Backup:24V DC
Muting function:0-30dB
Dimensions(W*H*D):440*92*410
Net weight:20kg

Model: MA-8560
Mains Supply:220-240V/50Hz
Power consumption:1120W
Power Output:560W
Output Regulation:<3dB
Frequency response:100Hz-16000Hz
DISTORTION(THD):<0.3% at 1kHz,1/3 rated power
Speaker Output:4-16V,70Ve100V
Aux output:600V 1V (odBV)
Input:Mic 1,2,3:600V,6mV,unbalanced Aux 1,2,3:10kV,250mV,unbalanced
S/N ratio:Mic 1,2,3>66dB Aux 1,2>70dB
Tone control:Bass:±10dB at 100Hz Treble:±10dB at 10kHz
Protection:AC Fuse,DC Voltage,Overload and short circuit
Backup:24V DC
Muting function:0-30dB
Dimensions(W*H*D):440*92*410
Net weight:21kg

Model: MA-8650
Mains Supply:220-240V/50Hz
Power consumption:1300W
Power Output:650W
Output Regulation:<3dB
Frequency response:100Hz-16000Hz
DISTORTION(THD):<0.3% at 1kHz,1/3 rated power
Speaker Output:4-16V,70Ve100V
Aux output:600V 1V (odBV)
Input:Mic 1,2,3:600V,6mV,unbalanced Aux 1,2,3:10kV,250mV,unbalanced
S/N ratio:Mic 1,2,3>66dB Aux 1,2>70dB
Tone control:Bass:±10dB at 100Hz Treble:±10dB at 10kHz
Protection:AC Fuse,DC Voltage,Overload and short circuit
Backup:24V DC
Muting function:0-30dB
Dimensions(W*H*D):440*92*410
